Machine threading
For suitable internal threading operations where the machine, workpiece, hole and cutting conditions are reviewed together.
HSS Machine Tap
Product-family image shown for this machine-tap route. Confirm the selected configuration in your quotation.
HSS machine tap manufacturer · Ludhiana, India
HSS Machine
Taps
Threading tools for suitable machine operations.
SWAGIN HSS machine taps support controlled internal threading where the machine, hole preparation, material, thread standard and cutting conditions are reviewed together. Share the size, pitch, quantity and drawing reference for a suitable configuration review.
M2 · M35 · M42Material grades6–100 mm, 1/4"-4"Listed size range62–64 HRCListed hardness
Product overview
Machine threading matched to the job.
High-speed steel machine taps are selected against the machine type, spindle and alignment, workpiece material, hole form, thread depth, chip movement, lubrication and required production cycle.
A machine tap is not selected by size alone. Confirm the thread standard, tolerance, geometry, coating, dimensions and process conditions in the quotation.
Application-led review
Details that help
you choose.
Technical and commercial terms are confirmed for the selected configuration. No universal leak-free, delivery or performance promise is made here.
Machine operation review
Confirm machine, alignment, workholding, hole preparation, lubrication and tapping cycle before selection.
HSS grade options
Discuss M2, M35 or M42 according to the workpiece material and production requirement.
Ground-thread finish
Supports controlled thread formation and dimensional review for the selected configuration.
Lead and flute choices
Review 2-, 4- or 6-thread lead and straight 4- or 6-flute options against the selected application.
Drawing-led supply
Share the pipe standard, size, tolerance, quantity and inspection requirement for quotation.
Technical information
Confirm the right machine-tap configuration.
These are listed product-family details. Confirm the exact designation, dimensions, grade, coating, gauge, availability and commercial terms in the quotation.
ProductHSS Machine Tap
Material gradesM2 (HSS), M35 (HSS-E), M42 (HSS-ECO)
Hardness62-64 HRC
Size rangeConfirmed for the selected thread and configuration
FinishGround thread
Thread standardsMetric, unified, British, pipe and drawing-led requirements
Thread formConfirmed against the selected standard
ToleranceRequired gauge or application specification
FlutesStraight flutes; 4-flute or 6-flute options
Lead / chamfer2-thread, 4-thread or 6-thread lead
CoatingDiscuss the required coating for the material and process
Country of originIndia
Thread families
Find the thread
you need.
These are enquiry options, not a live inventory claim. Send the exact component drawing where a thread designation is ambiguous.
MetricCoarse pitch · Fine pitch
BritishBSW · BSF · BA · BSCY · BSB
UnifiedUNC · UNF
Pipe and fittingBSP · BSPT · NPT · NPS · NPSF · NGT · NPTF · NPSI · NPSM
Practical thread reference
Know the thread.
Specify it clearly.
For HSS taps and dies, metric pitch is measured in millimetres; inch threads are usually specified in TPI (threads per inch).
| Thread name | Full name / meaning | Example size |
|---|---|---|
| M – Metric Coarse | ISO metric coarse thread | M10 × 1.5 mm |
| Metric Fine / MF | ISO metric fine thread; normally marked M with pitch | M10 × 1.0 mm |
| UNC | Unified National Coarse | 1/2″–13 UNC |
| UNF | Unified National Fine | 1/2″–20 UNF |
| UNEF | Unified National Extra Fine | 1/2″–28 UNEF |
| UN | Unified constant-pitch series, such as 8-UN, 12-UN and 16-UN | 1-1/2″–8 UN |
| UNS | Unified National Special | 1/2″–24 UNS |
| UNR | Unified thread with a rounded external root | Specify size, TPI and series |
| UNJ / UNJC / UNJF / UNJS | Unified J-profile threads, including coarse, fine and special series | Specify complete drawing designation |
| BSW | British Standard Whitworth, coarse | 1/2″–12 BSW |
| BSF | British Standard Fine | 1/2″–16 BSF |
| BSPP / G | British Standard Pipe Parallel | G 1/2 |
| BSPT / R | British Standard Pipe Taper; R denotes external taper | R 1/2 |
| Rc / Rp | BSP mating internal threads: Rc taper, Rp parallel | Rc 1/2 or Rp 1/2 |
| NPT | National Pipe Taper | 1/2″–14 NPT |
| NPTF | Dryseal National Pipe Taper | 1/2″–14 NPTF |
| NPSM / NPSL / NPSC | American straight pipe-thread series for different applications | Specify exact series |
| BA | British Association thread | 0 BA, 2 BA, 4 BA |
| BSB | British Standard Brass thread | Diameter × TPI BSB |
| BSC / CEI | British Standard Cycle / Cycle Engineers’ Institute | Diameter × TPI BSC |
| ACME | Inch trapezoidal thread, 29° profile | Diameter × TPI ACME |
| Stub ACME | Shallower ACME thread | Diameter × TPI Stub ACME |
| Tr | Metric trapezoidal thread, 30° profile | Tr20 × 4 |
| Buttress | Asymmetric thread for heavy axial loads | Specify standard and profile |
| Rd | Round thread | Specify standard, diameter and pitch |
How to read an order size
- M10 × 1.5: 10 mm nominal diameter, 1.5 mm pitch.
- 1/2″–13 UNC: 1/2 inch nominal diameter, 13 TPI, UNC thread.
- Pitch in mm = 25.4 ÷ TPI.
- RH / LH: right-hand / left-hand thread.
- Pipe sizes are nominal: a 1/2″ BSP or NPT thread does not have a 12.7 mm outside diameter.
Unified thread families are covered by ASME B1.1. This practical industry list includes common metric, Unified, British and pipe series; it is not every specialist thread standard worldwide.
For quotationsWrite diameter + pitch/TPI + thread standard + RH/LH + tolerance class, where applicable.Discuss your thread requirement
Industrial uses
Tools for every
machine route.
Illustrative industry applications, not customer or project claims. Discuss the drawing, material, machine, hole and production quantity with the manufacturer.
01
Nuts and fasteners
Internal threads in nuts and internally threaded components. Review a dedicated nut or machine tap for volume production.
Herusutimbul / CC BY-SA 4.0Discuss this application
02
Tool rooms, dies and moulds
Jigs, fixtures, die plates and tooling accessories where hardness, access and blind-hole clearance are suitable.
Discuss this application
03
Bicycle and cycle parts
Selected brackets and assemblies. Confirm special pitches, handedness and the exact component drawing.
Russ from Grosse Pointe Park / CC BY 2.0Discuss this application
04
Automotive and auto parts
Brackets, housings, fixtures and repair components. Distinguish manual work from repeated machine production.
Discuss this application
05
General engineering
Machine components, assemblies and workshop fixtures matched to the material and thread depth.
Discuss this application
06

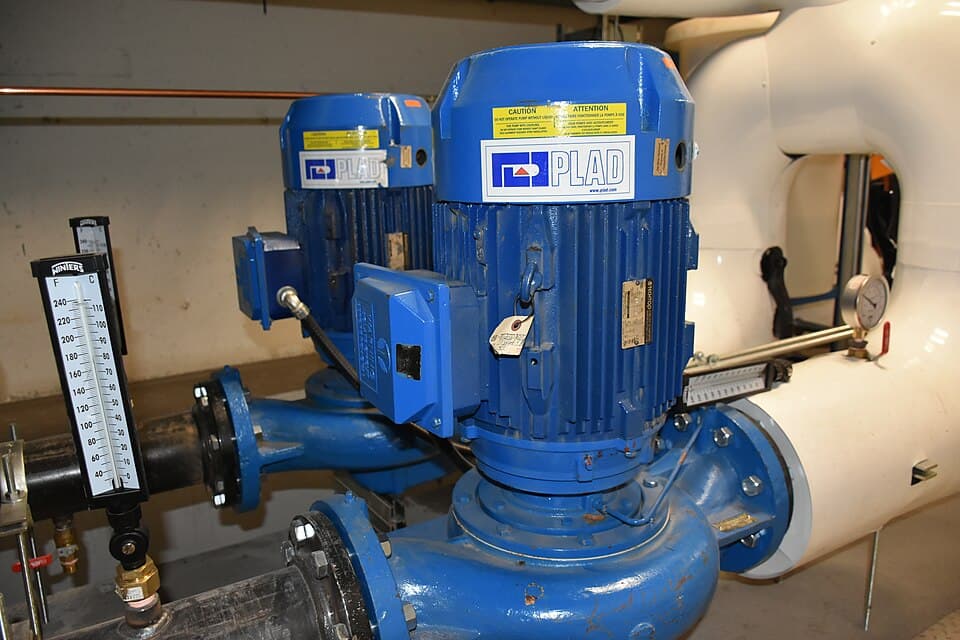

Pumps, valves and fittings
Mounting holes and threaded ports where parallel, taper and sealing requirements are confirmed.
Saud / CC BY-SA 4.0Discuss this application
07
Agricultural machinery
Brackets, replacement components and machinery fixtures selected for the access and repair condition.
Bidemi Bernice / CC0 1.0Discuss this application
08
Maintenance and repair
Replacement-part preparation and damaged-thread assessment. An insert may be needed where material is missing.
Shixart1985 / CC BY 2.0Discuss this application
09
Aircraft, aerospace and space
Drawing-led fixtures and qualified manufacturing-process enquiries. No blanket aerospace approval is claimed.
Discuss this application
10
Electrical and electronics industries using HSS taps
Enclosures, panels, motor assemblies and electrical hardware where thread size, material and insulation constraints are reviewed.
Discuss this applicationHSS machine tap enquiry
Tell us what you need.
We will review the route.
Share the thread standard, size, material, machine, quantity or drawing reference. The enquiry is sent to the configured company inbox.
Buyer questions
Clear answers
before you order.
What is an HSS machine tap used for?
It is used for suitable machine threading operations that create internal threads in prepared holes.
What sizes and thread standards are available?
Confirm the exact size, pitch, thread designation, tolerance and availability for the selected configuration in the quotation.
Can you review special thread requirements?
Yes. Share the exact thread standard, component drawing, machine details and inspection requirements for technical review.
Which material grades are available?
The listed options are M2, M35 and M42. Grade selection depends on the workpiece material and process.
Can you support bulk or custom requirements?
Yes. Share size-wise quantities, drawings, tolerance, coating, inspection and delivery requirements for review.
Continue exploring
Related tools
for the job.
Review other threading routes when the application needs a different machine, hand, nut or special thread tap.
HSS Threading Hand Tap

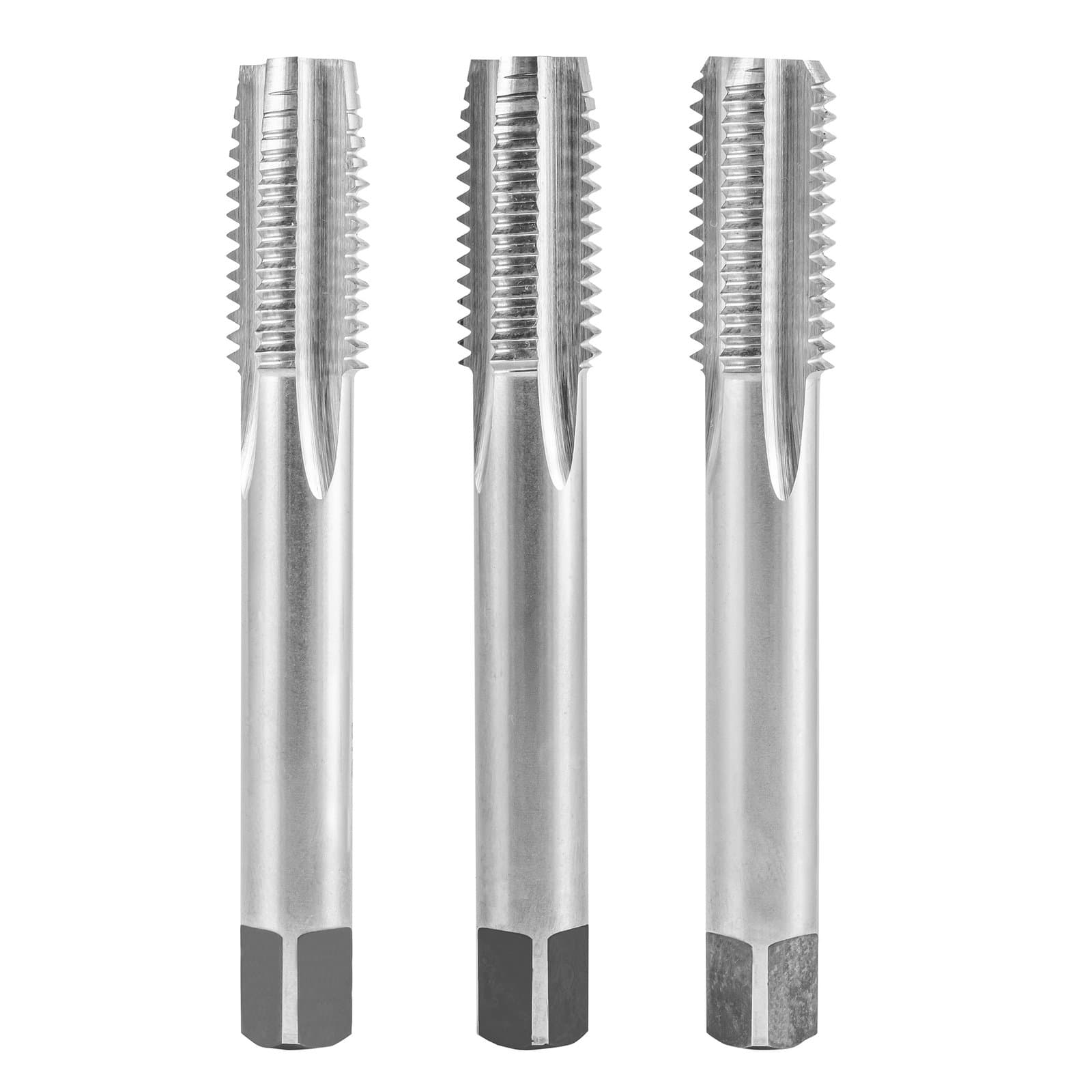

HSS Hand Tap Set
